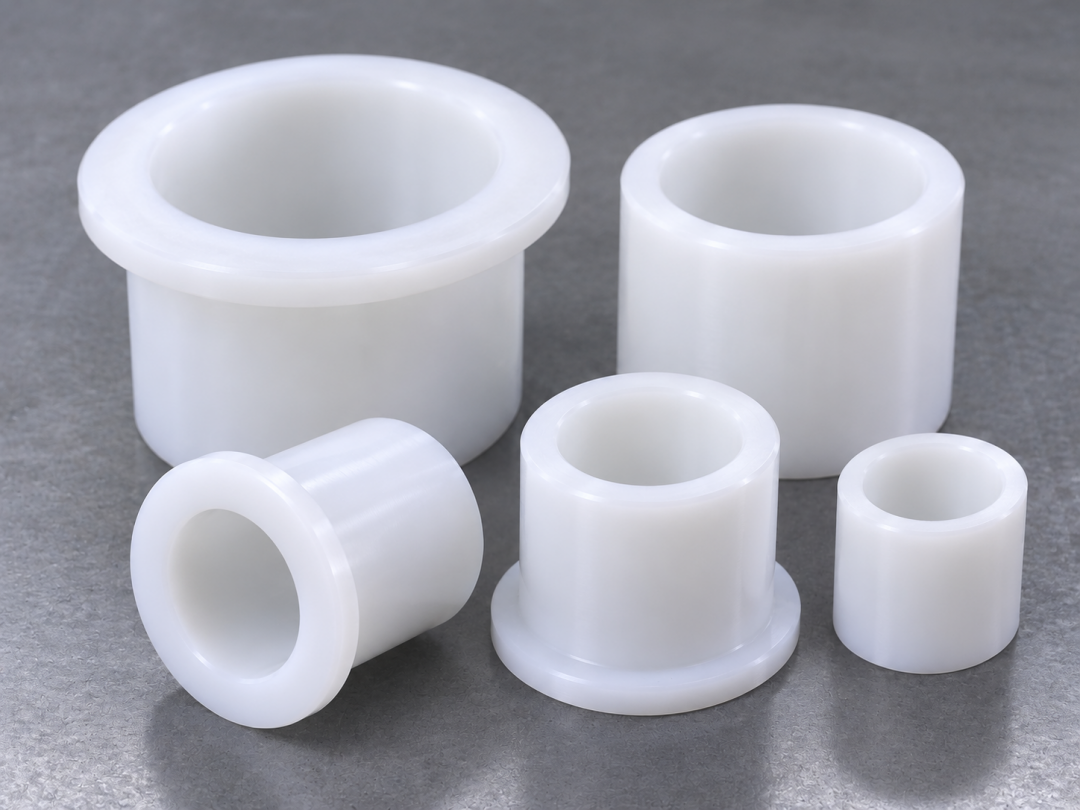

UHMWPE bushing

Product details

UHMWPE bushing quotation details

UHMWPE Bushings Made to Customer Drawings provide customized engineering solutions for applications requiring low friction, excellent wear resistance, and reliable mechanical performance. Manufactured from ultra-high molecular weight polyethylene (UHMWPE), these precision-machined bushings are designed according to customer drawings, samples, and specific application requirements. We specialize in producing custom UHMWPE bushings using advanced CNC machining technology to achieve accurate dimensions, smooth surfaces, and consistent quality. Our bushings can be manufactured in various sizes, shapes, and designs, including straight bushings, flanged bushings, custom sleeves, and special-purpose components for industrial equipment. UHMWPE bushings are widely used in conveyor systems, automation machinery, material handling equipment, packaging machines, food processing equipment, and other industrial applications. With self-lubricating properties, low friction coefficient, impact resistance, and excellent chemical resistance, they help reduce wear between moving parts and extend equipment service life. Our custom UHMWPE bushing solutions support OEM requirements, replacement components, and specialized engineering projects. Customers can provide technical drawings, CAD files, or samples, and our team will manufacture precision UHMWPE bushings according to the required specifications. With professional machining capabilities and experience in engineering plastics, we deliver durable and cost-effective UHMWPE Bushings Made to Customer Drawings for global industrial applications.

• 1. Product Overview
• Product Name: UHMWPE Bushings Made to Customer Drawings
• Material: Ultra High Molecular Weight Polyethylene (UHMWPE / PE1000)
• Manufacturing Process: CNC Turning, CNC Milling, Precision Machining, Drilling, Custom Fabrication
• Application: Industrial machinery, conveyor equipment, automation systems, material handling equipment, packaging machinery, and custom mechanical applications.
• Custom UHMWPE bushings are precision-machined according to customer drawings, samples, or technical requirements. Designed for low-friction movement and wear protection, these bushings provide reliable performance in applications where traditional metal components may experience excessive wear, corrosion, or lubrication issues.
• 2. Product Specifications
• Material Options
• Available UHMWPE materials:
• Virgin UHMWPE
• Food Grade UHMWPE
• Anti-Static UHMWPE
• UV Resistant UHMWPE
• Modified UHMWPE Materials
• Customized material grades based on working conditions
• Machining Capabilities
• We provide:
• CNC Turning
• CNC Milling
• Internal Bore Machining
• External Diameter Machining
• Drilling
• Groove Machining
• Flange Machining
• Surface Finishing
• Custom Dimensions
• UHMWPE bushings can be customized according to:
• Outer diameter
• Inner diameter
• Length
• Wall thickness
• Tolerance requirements
• Mounting structure
• Special shapes and profiles
• Manufacturing is available based on:
• Customer drawings
• CAD files
• Samples
• Technical specifications
• 3. Available UHMWPE Bushing Types
• Bushing Type Application
• Straight UHMWPE Bushings General mechanical applications
• Flanged UHMWPE Bushings Positioning and equipment assembly
• Sleeve Bushings Shaft protection and sliding movement
• Custom Machined Bushings Special industrial equipment
• Wear Bushings High-abrasion environments
• 4. Product Features
• Low Friction Performance
• UHMWPE bushings provide a smooth sliding surface, reducing friction between moving components and improving mechanical efficiency.
• Excellent Wear Resistance
• The high abrasion resistance of UHMWPE helps extend service intervals and reduce replacement frequency.
• Self-Lubricating Properties
• UHMWPE has natural low-friction characteristics, reducing the need for additional lubrication in many applications.
• Impact Resistance
• High impact strength enables reliable operation under repeated mechanical loads and demanding conditions.
• Chemical Resistance
• UHMWPE bushings maintain stable performance when exposed to moisture, chemicals, and corrosive environments.
• Lightweight Alternative
• Compared with metal bushings, UHMWPE components are lighter and easier to install while providing excellent wear performance.
• 5. Technical Information Required for Quotation
• To provide an accurate quotation, please provide:
• Drawing & Design Information
• Product drawing
• CAD file (STEP / DWG / DXF)
• Product sample
• Reference photos
• Assembly requirements
• Dimension Requirements
• Outer diameter
• Inner diameter
• Length
• Tolerance requirements
• Surface finish requirements
• Application Information
• Equipment type
• Shaft material
• Operating speed
• Load condition
• Working temperature
• Operating environment
• Material Requirements
• Standard UHMWPE
• Food-grade requirement
• Anti-static requirement
• Chemical resistance requirement
• Special performance requirements
• 6. Manufacturing Capability
• Our production capabilities include:
• Custom CNC machining
• Prototype development
• Small batch production
• Large volume manufacturing
• OEM component production
• Drawing-based manufacturing
• We support customized UHMWPE bushing solutions for different industrial applications and equipment designs.
• 7. Quality Control
• Quality inspection includes:
• Raw material inspection
• Dimensional measurement
• Bore diameter inspection
• Surface finish checking
• Tolerance verification
• Final product inspection
• Quality documents can be provided according to customer requirements.
• 8. Packaging Details
• Packaging options include:
• Individual protective packaging
• PE film wrapping
• Carton packaging
• Wooden case packaging for export shipment
• Customized packaging solutions
• 9. Application Industries
• Industry Application
• Conveyor Systems Guide components and rotating parts
• Automation Equipment Sliding and positioning components
• Packaging Machinery Wear-resistant moving parts
• Food Processing Low-friction hygienic components
• Material Handling Mechanical protection parts
• Industrial Equipment Custom replacement components
• 10. Custom Manufacturing Service
• We provide:
• OEM & ODM manufacturing
• Drawing-to-production service
• Sample-based customization
• Engineering support
• Custom UHMWPE component solutions
• Customers can send drawings, samples, or technical requirements for evaluation. Our team will manufacture reliable UHMWPE Bushings Made to Customer Drawings according to your application needs.
