Material selection
Selection guidance
Select the material and processing route from the drawing, wear condition, impact condition, operating temperature and required documents. Values are confirmed for the chosen grade before ordering.
Product

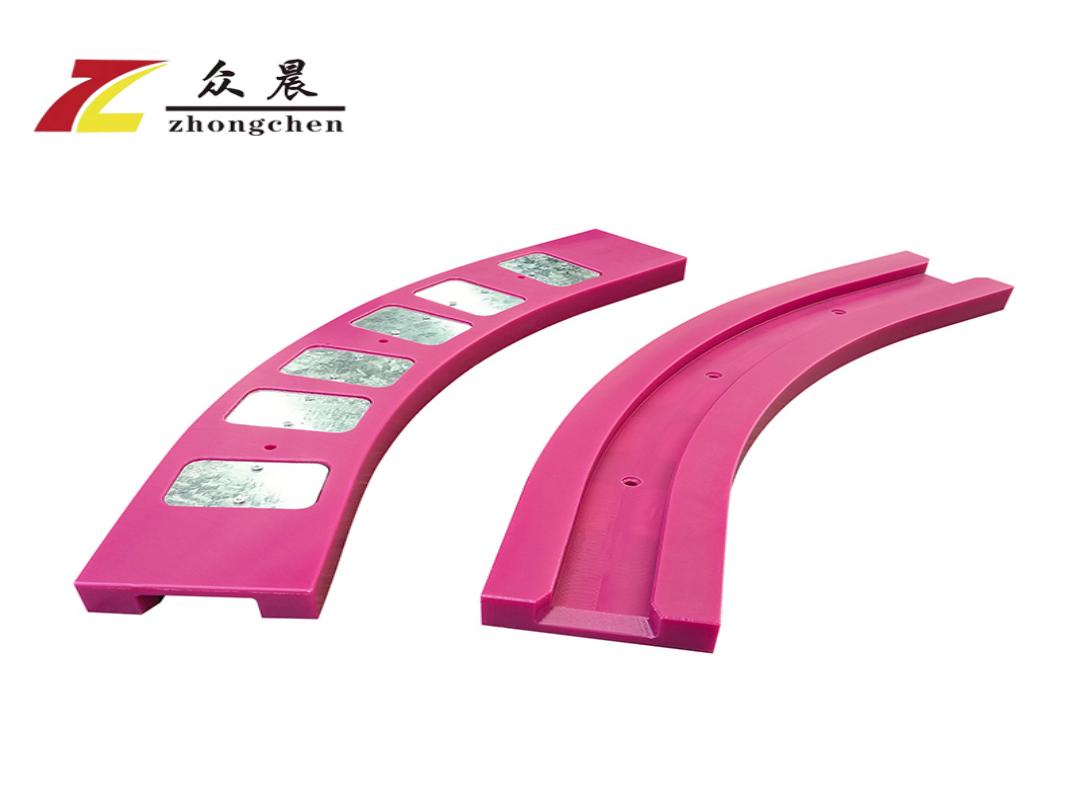

CNC Machined UHMWPE Guide Rails
Precision machined UHMWPE guide rails provide low friction, excellent wear resistance and smooth operation for conveyor chains, bottles and automated production lines.
Updated · ZCUHMWPE
Key features
Product and quotation overview
- Material: UHMWPE PE1000
- Manufacturing Method: CNC milling, drilling
- Length: Customized length available
- Design: Produced according to CAD drawings or samples
- Hole Pattern: Customized
- Application: Conveyor systems, packaging machines, automation equipment
- Price Factors: Length, machining time, drawing complexity, order volume
Specifications
Confirmed quotation inputs
Only confirmed product data is displayed. Grade-specific values and certifications require supporting documents.
| Product family | CNC Machined UHMWPE Parts |
|---|---|
| Dimensions and tolerances | Reviewed against the RFQ, drawing or approved sample |
| Material and documents | Confirmed for the selected grade and order requirements before quotation |
Custom processing
Drawing-based capability review
- Cutting reviewed against the required dimensions
- Drilling and milling reviewed against the drawing
- CNC machining reviewed for drawing-based parts
Quality control
Inspection and records
- Material and molecular-weight testing are available at company level
- Dimensions and surface condition are inspected against the order requirements
- Batch records and machining inspection are confirmed for the order
Available documents
Documents by confirmation
- TDS availability is confirmed for the selected material and order
- MTR availability is confirmed for the selected material and order
- Internal inspection documents are confirmed before quotation
Related products
Compare adjacent options
Standard UHMWPE Sheet
Standard UHMWPE sheets for liners, guides and sliding components. Send thickness, size, tolerance, quantity and application details for quotation.
View Details →
Custom UHMWPE Sheet Manufacturer
We manufacture custom UHMWPE sheets using high-quality Ultra High Molecular Weight Polyethylene, offering excellent wear resistance, low friction, impact strength, and chemical resistance. Our custom UHMWPE sheets are widely used for wear liners, conveyor components, chute liners, guide rails, and industrial machine parts. We provide flexible customization including size, thickness, color, cutting, drilling, and CNC machining according to customer requirements.Contact us for customized UHMWPE sheet solutions tailored to your industrial needs. Custom UHMWPE sheets cut or machined to drawings, with material testing, dimensional inspection and export documentation support.
View Details →Related resources
Applications, technical guidance and contact
FAQ
Purchasing questions
What information is needed to quote CNC Machined UHMWPE Guide Rails?
Provide dimensions or drawings, tolerances, quantity, application conditions, required documents and delivery destination.
Can technical values or certifications be confirmed before ordering?
Yes. Required values and supporting documents are reviewed for the selected material grade before they are included in a quotation or order document.
RFQ checklist
- Product name and material requirement
- Dimensions, drawing, tolerances and quantity
- Application, operating temperature, load or impact condition
- Required documents and delivery destination
