custom UHMWPE guide rail

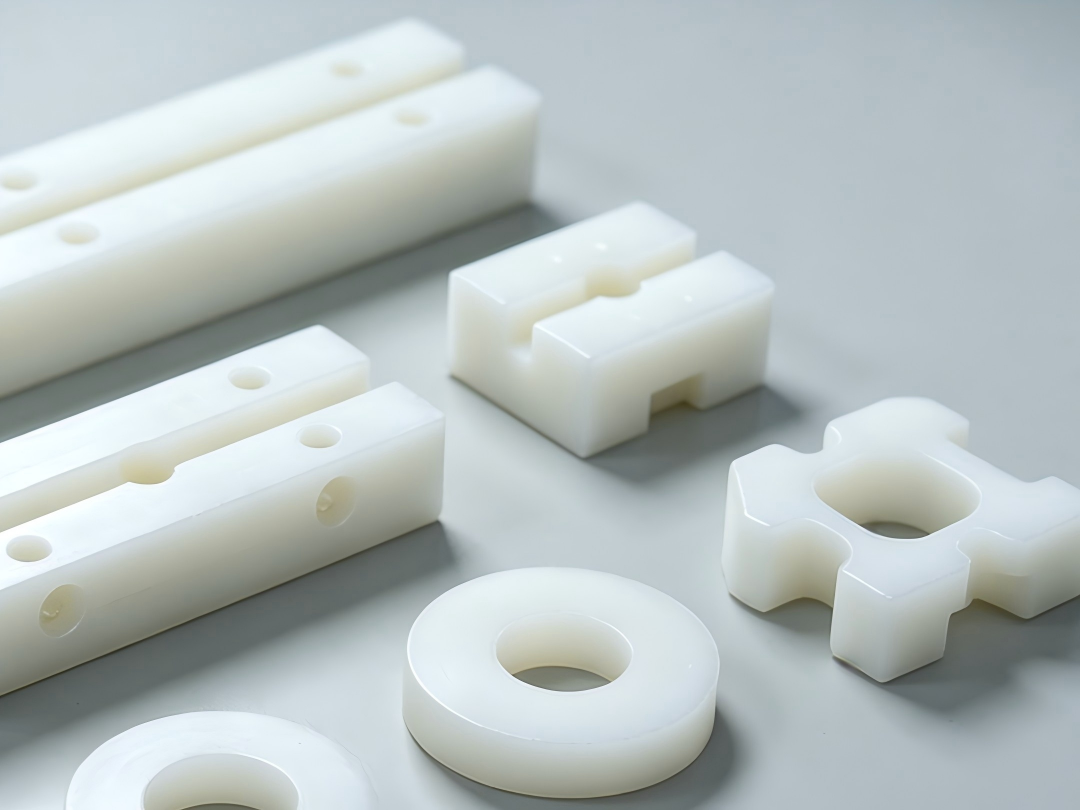

Custom UHMWPE Guide Rails & Wear Strips Precision-engineered for OEM projects, our UHMWPE guide rails and wear strips offer exceptional wear resistance, self-lubrication, and high impact strength—even at -80°C. Customization Options: Cut-to-size dimensions & complex profiles (T, L, V-shapes). Optional additives: anti-static, flame-retardant (V0), and UV-resistant. Various colors available. Applications: Ideal for conveyor systems, packaging machinery, and automated production lines. Quality: Tight machining tolerances (up to ±0.1mm) with protective packaging. Send us your CAD drawings for a quick, competitive quote today!
Product details
custom UHMWPE guide rail quotation details
Custom UHMWPE Guide Rails & Wear Strips Precision-engineered for OEM projects, our UHMWPE guide rails and wear strips offer exceptional wear resistance, self-lubrication, and high impact strength—even at -80°C. Customization Options: Cut-to-size dimensions & complex profiles (T, L, V-shapes). Optional additives: anti-static, flame-retardant (V0), and UV-resistant. Various colors available. Applications: Ideal for conveyor systems, packaging machinery, and automated production lines. Quality: Tight machining tolerances (up to ±0.1mm) with protective packaging. Send us your CAD drawings for a quick, competitive quote today!
- 1. Material Specifications
- Molecular Weight (MW): 3 to 9 million g/mol (higher MW = better wear).
- Grade: Standard, FDA food-grade, or medical-grade.
- Additives: Anti-static, flame-retardant (V0), UV-stabilized, or glass-filled.
- Color: Standard yellow/black/blue/green, or custom Pantone-matched.
- 2. Dimensions & Tolerances
- Drawings: Require 2D (DXF) or 3D (STEP) files for confirmation.
- Profiles: Rectangular, T-shape, L-shape, V-groove, C-channel, or fully custom.
- Length: Up to 6 meters continuous.
- Tolerances: Standard ±0.5mm; precision ±0.1mm available.
- Post-machining: Drilling, counterboring, slotting, threading, chamfering, or metal inserts.
- 3. Surface & Edge Finishing
- Surface: Extruded original, sandblasted (anti-slip), or mirror-polished.
- Edge: Sawn, rounded, or chamfered edges.
- 4. Pricing Structure & Commercial Terms
- Unit: Price per meter, per piece, or per kilogram.
- MOQ: Minimum order quantity (e.g., 100 meters).
- Tiered Pricing: Discounts for volumes (e.g., 100, 500, 1000+ pcs).
- Tooling Fee: One-time die/mold fee for non-standard profiles; refundable upon reaching a bulk quantity.
- 5. Logistics & Lead Times
- Packaging: PE film wrapped + corner protectors + fumigation-free pallets/crates.
- Incoterms: EXW, FOB, or CIF/DDP.
- Sample Lead Time: 5–7 working days.
- Mass Lead Time: 10–15 working days (based on 1000m).
- Payment: 30% T/T deposit, 70% balance before shipment.
- 6. Quality Assurance
- Certification: Material test report (density, tensile strength, abrasion loss).
- Inspection: Third-party (SGS/BV) available upon request.
- Warranty: 12 months against material defects and deformation under normal use.
